Getting started

Important points covered in this tutorial
  • Create a domain and its accompanying mesh
  • Solve a basic boundary integral equation
  • Visualize the solution

This first tutorial will be a guided tour through the basic steps of setting up a boundary integral equation and solving it using Inti.jl.

Mathematical formulation

We will consider the classic Helmholtz scattering problem in 2D, and solve it using a direct boundary integral formulation. More precisely, letting $\Omega \subset \mathbb{R}^2$ be a bounded domain, and denoting by $\Gamma = \partial \Omega$ its boundary, we will solve the following Helmholtz problem:

\[\begin{aligned} \Delta u + k^2 u &= 0 \quad &&\text{in} \quad \mathbb{R}^2 \setminus \overline{\Omega},\\ \partial_\nu u &= g \quad &&\text{on} \quad \Gamma,\\ \sqrt{r} \left( \frac{\partial u}{\partial r} - i k u \right) &= o(1) \quad &&\text{as} \quad r = |\boldsymbol{x}| \to \infty, \end{aligned}\]

where $g$ is the given boundary datum, $\nu$ is the outward unit normal to $\Gamma$, and $k$ is the constant wavenumber. The last condition is the Sommerfeld radiation condition, and is required to ensure the uniqueness of the solution; physically, it means that the solution sought should radiate energy towards infinity.

PDE, geometry, and mesh

The first step is to define the PDE under consideration:

using Inti
Inti.stack_weakdeps_env!() # add weak dependencies
# PDE
k = 2π
op = Inti.Helmholtz(; dim = 2, k)
Helmholtz operator in 2 dimensions: -Δu - k²u

Next, we generate the geometry of the problem. For this tutorial, we will manually create parametric curves representing the boundary of the domain using the parametric_curve function:

using StaticArrays # for SVector
# Create the geometry as the union of a kite and a circle
kite = Inti.parametric_curve(0.0, 1.0; labels = ["kite"]) do s
    return SVector(2.5 + cos(2π * s[1]) + 0.65 * cos(4π * s[1]) - 0.65, 1.5 * sin(2π * s[1]))
end
circle = Inti.parametric_curve(0.0, 1.0; labels = ["circle"]) do s
    return SVector(cos(2π * s[1]), sin(2π * s[1]))
end
Γ = kite ∪ circle
Domain with 2 entities
 EntityKey: (1, 473) => Inti.GeometricEntity with labels ["circle"]
 EntityKey: (1, 472) => Inti.GeometricEntity with labels ["kite"]

Inti.jl expects the parametrization of the curve to be a function mapping scalars to points in space represented by SVectors. The labels argument is optional, and can be used to identify the different parts of the boundary. The Domain object Γ represents the boundary of the geometry, and can be used to create a mesh:

# Create a mesh for the geometry
msh = Inti.meshgen(Γ; meshsize = 2π / k / 10)
Inti.Mesh{2, Float64} containing:
	 63 elements of type Inti.ParametricElement{Inti.ReferenceHyperCube{1}, StaticArraysCore.SVector{2, Float64}, Inti.var"#48#49"{Inti.var"#120#122"{Main.var"#3#4"}, Inti.HyperRectangle{1, Float64}}}
	 94 elements of type Inti.ParametricElement{Inti.ReferenceHyperCube{1}, StaticArraysCore.SVector{2, Float64}, Inti.var"#48#49"{Inti.var"#120#122"{Main.var"#1#2"}, Inti.HyperRectangle{1, Float64}}}

To visualize the mesh, we can load Meshes.jl and one of Makie's backends:

using Meshes, GLMakie

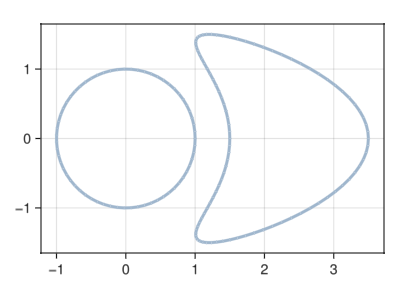

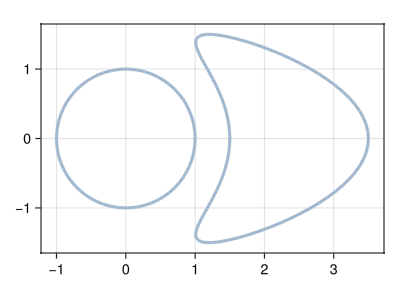

viz(msh; segmentsize = 3, axis = (aspect = DataAspect(), ), figure = (; size = (400,300)))
Example block output

Quadrature

Once the mesh is created, we can define a quadrature to be used in the discretization of the integral operators:

# Create a quadrature
Q = Inti.Quadrature(msh; qorder = 5)

A Quadrature is simply a collection of QuadratureNode objects:

Q[1]
Quadrature node:
-- coords: [0.9999985564254644, 0.0016991606713842712]
-- normal: [0.9999985564254645, 0.0016991606713842712]
-- weight: 0.005917215762519871

In the constructor above we specified a quadrature order of 5, and Inti.jl internally picked a ReferenceQuadrature suitable for the specified order; for finer control, a quadrature rule can be specified directly.

Integral operators

To continue, we need to reformulate the Helmholtz problem as a boundary integral equation. Among the plethora of options, we will use in this tutorial a simple direct formulation, which uses Green's third identity to relate the values of $u$ and $\partial_{\nu} u$ on $\Gamma$:

\[ -\frac{u(\boldsymbol{x})}{2} + D[u](\boldsymbol{x}) = S[\partial_\nu u](\boldsymbol{x}), \quad \boldsymbol{x} \in \Gamma.\]

Here $S$ and $D$ are the single- and double-layer operators, formally defined as:

\[ S[\sigma](\boldsymbol{x}) = \int_\Gamma G(\boldsymbol{x}, \boldsymbol{y}) \sigma(\boldsymbol{y}) \ \mathrm{d}s(\boldsymbol{y}), \quad D[\sigma](\boldsymbol{x}) = \int_\Gamma \frac{\partial G}{\partial \nu_{\boldsymbol{y}}}(\boldsymbol{x}, \boldsymbol{y}) \sigma(\boldsymbol{y}) \ \mathrm{d}s(\boldsymbol{y}),\]

where

\[G(\boldsymbol{x}, \boldsymbol{y}) = \frac{i}{4} H^{(1)}_0(k|\boldsymbol{x} - \boldsymbol{y}|)\]

is the fundamental solution of the Helmholtz equation, with $H^{(1)}_0$ being the Hankel function of the first kind. Note that $G$ is singular when $\boldsymbol{x} = \boldsymbol{y}$, and therefore the numerical discretization of $S$ and $D$ requires special care.

To approximate $S$ and $D$, we can proceed as follows:

S, D = Inti.single_double_layer(;
    op,
    target = Q,
    source = Q,
    compression = (method = :none,),
    correction = (method = :dim,),
)

Much of the complexity involved in the numerical computation is hidden in the function above; later in the tutorials we will discuss in more details the options available for the compression and correction methods, as well as how to define custom kernels and operators. For now, it suffices to know that S and D are matrix-like objects that can be used to solve the boundary integral equation. For that, we need to provide the boundary data $g$.

Fast algorithms

Powered by external libraries, Inti.jl supports several acceleration methods for matrix-vector multiplication, including so far:

  • Fast multipole method (FMM) $\mapsto$ correction = (method = :fmm, tol = 1e-8)
  • Hierarchical matrix (H-matrix) $\mapsto$ correction = (method = :hmatrix, tol = 1e-8)

Note that in such cases only the matrix-vector product may not be available, and therefore iterative solvers such as GMRES are required for the solution of the resulting linear systems.

Source term and solution

We are interested in the scattered field $u$ produced by an incident plane wave $u_i = e^{i k \boldsymbol{d} \cdot \boldsymbol{x}}$, where $\boldsymbol{d}$ is a unit vector denoting the direction of the plane wave. Assuming that the total field $u_t = u_i + u$ satisfies a homogenous Neumann condition on $\Gamma$, and that the scattered field $u$ satisfies the Sommerfeld radiation condition, we can write the boundary condition as:

\[ \partial_\nu u = -\partial_\nu u_i, \quad \boldsymbol{x} \in \Gamma.\]

We can thus solve the boundary integral equation to find $u$ on $\Gamma$:

using LinearAlgebra
# define the incident field and compute its normal derivative
θ = 0
d = SVector(cos(θ), sin(θ))
g = map(Q) do q
    # normal derivative of e^{ik*d⃗⋅x}
    x, ν = q.coords, q.normal
    return -im * k * exp(im * k * dot(x, d)) * dot(d, ν)
end ## Neumann trace on boundary
u = (-I / 2 + D) \ (S * g) # Dirichlet trace on boundary
Iterating over a quadrature

In computing g above, we used map to evaluate the incident field at all quadrature nodes. When iterating over Q, the iterator returns a QuadratureNode, and not simply the coordinate of the quadrature node. This is so that we can access additional information, such as the normal vector, at the quadrature node.

Integral representation and visualization

Now that we know both the Dirichlet and Neumann data on the boundary, we can use Green's representation formula, i.e.,

\[ \mathcal{D}[u](\boldsymbol{r}) - \mathcal{S}[\partial_{\nu} u](\boldsymbol{r}) = \begin{cases} u(\boldsymbol{r}) & \text{if } \boldsymbol{r} \in \mathbb{R}^2 \setminus \overline{\Omega},\\ 0 & \text{if } \boldsymbol{r} \in \Omega, \end{cases}\]

where $\mathcal{D}$ and $\mathcal{S}$ are the double- and single-layer potentials defined as:

\[ \mathcal{S}[\sigma](\boldsymbol{r}) = \int_{\Gamma} G(\boldsymbol{r}, \boldsymbol{y}) \sigma(\boldsymbol{y}) \ \mathrm{d}s(\boldsymbol{y}), \quad \mathcal{D}[\sigma](\boldsymbol{r}) = \int_{\Gamma} \frac{\partial G}{\partial \nu_{\boldsymbol{y}}}(\boldsymbol{r}, \boldsymbol{y}) \sigma(\boldsymbol{y}) \ \mathrm{d}s(\boldsymbol{y}),\]

to compute the solution $u$ in the domain:

𝒮, 𝒟 = Inti.single_double_layer_potential(; op, source = Q)
uₛ = x -> 𝒟[u](x) - 𝒮[g](x)
#7 (generic function with 1 method)

To wrap things up, let's visualize the scattered field:

xx = yy = range(-5; stop = 5, length = 100)
U = map(uₛ, Iterators.product(xx, yy))
Ui = map(x -> exp(im*k*dot(x, d)), Iterators.product(xx, yy))
Ut = Ui + U

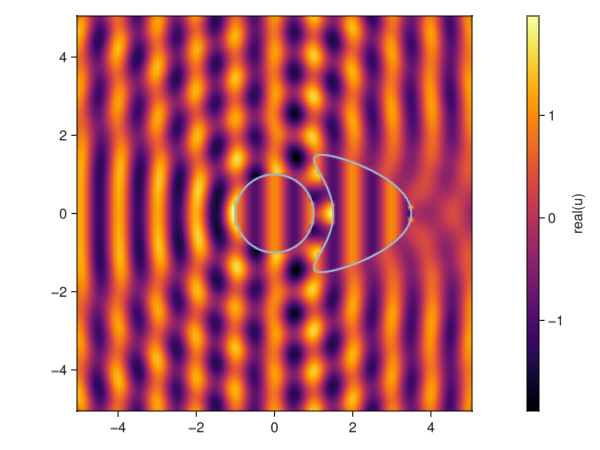

fig, ax, hm = heatmap(
    xx,
    yy,
    real(Ut);
    colormap = :inferno,
    interpolate = true,
    axis = (aspect = DataAspect(), xgridvisible = false, ygridvisible = false),
)
viz!(msh; segmentsize = 2)
Colorbar(fig[1, 2], hm; label = "real(u)")
Example block output

Accuracy check

The scattering example above does not provide an easy way to check the accuracy of the solution. To do so, we can manufacture an exact solution and compare it to the solution obtained numerically, as illustrated below:

# build an exact solution
G = Inti.SingleLayerKernel(op)
dG = Inti.DoubleLayerKernel(op)
xs = map(θ -> 0.5 * rand() * SVector(cos(θ), sin(θ)), 2π * rand(10))
cs = rand(ComplexF64, length(xs))
uₑ  = q -> sum(c * G(x, q) for (x, c) in zip(xs, cs))
∂ₙu = q -> sum(c * dG(x, q) for (x, c) in zip(xs, cs))
g  = map(∂ₙu, Q)
u = (-I / 2 + D) \ (S * g)
uₛ = x -> 𝒟[u](x) - 𝒮[g](x)
pts = [5*SVector(cos(θ), sin(θ)) for θ in range(0, 2π, length = 100)]
er = norm(uₛ.(pts) - uₑ.(pts), Inf)
println("maximum error on circle of radius 5: $er")
maximum error on circle of radius 5: 5.418983504867874e-11
