Elastic crack in 2D

Problem definition

In this example, we solve a disk crack problem in the context of linear elasticity using boundary integral equations. The problem involves determining the displacement jump field $\boldsymbol{\phi}$ in an infinite elastic domain containing a disk-shaped crack. It is possible to show that the problem can be reduced to a boundary integral equation of the form (e.g. [10, Chapter 13]):

\[T[\boldsymbol{\phi}] = -\boldsymbol{f},\]

where $T$ represents the integral operator associated with the hypersingular kernel, defined on the crack surface $\Gamma$; $\boldsymbol{f}$ is the applied traction on the boundary, which is symmetric on the two crack lips; and $\boldsymbol{\phi}$ is the so-called crack opening displacement (COD), defined as the "displacement" jump that occurs through the crack : $\boldsymbol{\phi}=\boldsymbol u^+-\boldsymbol u^-$.

This example demonstrates the formulation, solution, and visualization of the problem, highlighting the use of integral operators.

Geometry and mesh

The domain is a disk of radius 1 on the plane $z=0$. We use the GMSH library to create the mesh, and Inti's import_mesh function to import it.

using Inti
using StaticArrays
using Gmsh

meshsize = 0.2
qorder  = 2 # avoid 3 since it contains a negative weight
rx = ry = 1
gmsh.initialize(String[], false)
gmsh.option.setNumber("Mesh.MeshSizeMin", meshsize)
gmsh.option.setNumber("Mesh.MeshSizeMax", meshsize)
gmsh.model.occ.addDisk(0.0, 0.0, 0.0, rx, ry)
gmsh.model.occ.synchronize()
gmsh.model.mesh.generate(2)
gmsh.model.mesh.setOrder(1)
msh = Inti.import_mesh(; dim = 3)
Γ = Inti.Domain(e -> Inti.geometric_dimension(e) == 2, msh)
Γ_msh = msh[Γ]
Q = Inti.Quadrature(Γ_msh; qorder = 2)
gmsh.finalize()

Info    : Meshing 1D...
Info    : Meshing curve 1 (Ellipse)
Info    : Done meshing 1D (Wall 0.000180499s, CPU 0.000181s)
Info    : Meshing 2D...
Info    : Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.00789448s, CPU 0.007893s)
Info    : 123 nodes 245 elements

Note that we have used second-order elements for the mesh, which is useful for better representing the edges of the circular crack.

Integral operators

We will now build an approximation to $T$ using:

• A hierarchical matrix representation for the integral operator
• An adaptive correction to account for the singular and nearly singular interactions

using HMatrices
using LinearMaps
using LinearAlgebra
#Elastic properties
μ = 1; ν = 0.15;
E = 2*μ*(1+ν)
λ = ν*E / ((1+ν)*(1-2*ν))
op = Inti.Elastostatic(; λ, μ, dim = 3)
K = Inti.HyperSingularKernel(op)
Top = Inti.IntegralOperator(K, Q)
T₀ = Inti.assemble_hmatrix(Top)
δT = Inti.adaptive_correction(Top)

Boundary conditions

For the boundary conditions, we consider a constant normal loading on the crack surface, simply given by:

f = 1.0
t = -[SVector(0,0,f) for _ in Q]

Note that we used an SVector to represent the traction at a point on the crack surface. For vector-valued problems, SVectors and SMatrixs are often used to represent vectors and tensors, respectively, since their size is known at compile time (and small). This avoids the overhead of dynamic arrays.

We are now ready to compute the approximate solution.

Solution

The exact solution for this problem can be obtained by separation of variables in cylindrical coordinates, and can be shown to be:

σ = 1
φ₃(r) = 4*(1-ν)*σ / (π*μ) * sqrt(1-r^2)
uexact(x) = SVector(0, 0, φ₃(norm(x)))

uexact (generic function with 1 method)

To compute the approximate solution, we will need to solve the linear system:

\[T[\boldsymbol{\phi}] = \boldsymbol{f},\]

where $\boldsymbol{\phi}$ is the unknown vector of displacements. One difficulty that arises is related to the fact that in our implementation, both \phi and f are represented as Vectors of SVectors. While convenient for some operations, this can lead to difficulties when trying to solve the linear system since most linear algebra libraries expect matrices over a scalar field (usually either $\mathbb{R}$ or $\mathbb{C}$). To address this, we will write a short function solve that will convert between the vector of vectors and the vector of scalars.

using IterativeSolvers
function solve!(u, T₀, δT, t)
    @assert eltype(T₀) == eltype(δT) == SMatrix{3,3,Float64,9}
    @assert eltype(t) == eltype(u) == SVector{3,Float64}
    # write a LinearMap over scalars by reinterpreting them as vectors of SVectors,
    # applying our operators T₀ and δT, and converting back before returning
    L_ = LinearMap{Float64}(3 * size(T₀, 1)) do y, x
        σ = reinterpret(SVector{3,Float64}, x)
        μ = reinterpret(SVector{3,Float64}, y)
        mul!(μ, T₀, σ)
        mul!(μ, δT, σ, 1, 1)
        return y
    end
    # flatten our input vectors and call gmres on the Float64 version
    u_ = reinterpret(Float64, u)
    t_ = reinterpret(Float64, t)
    u_, gmres_hist = gmres!(u_, L_, t_, restart = 1000, maxiter = 1000, log=true)
    @show gmres_hist
    # since u_ is just a reinterpretation of u, we can simply return u when done
    return u
end
solve(T₀, δT, t) = solve!(zero(t), T₀, δT, t)

solve (generic function with 1 method)

We can now easily call solve to obtain our approximate solution:

φ = solve(T₀, δT, t)

gmres_hist = Converged after 28 iterations.

Visualization

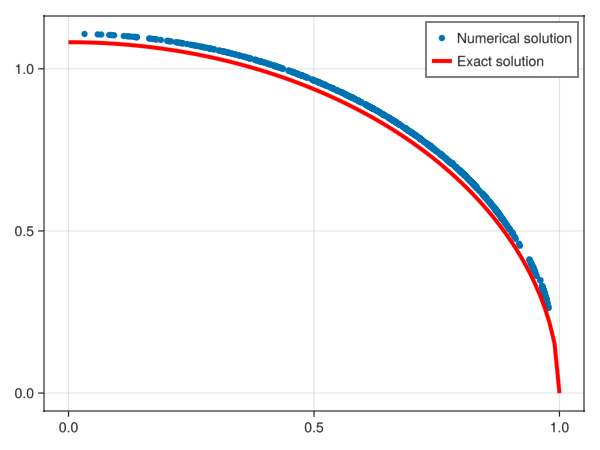

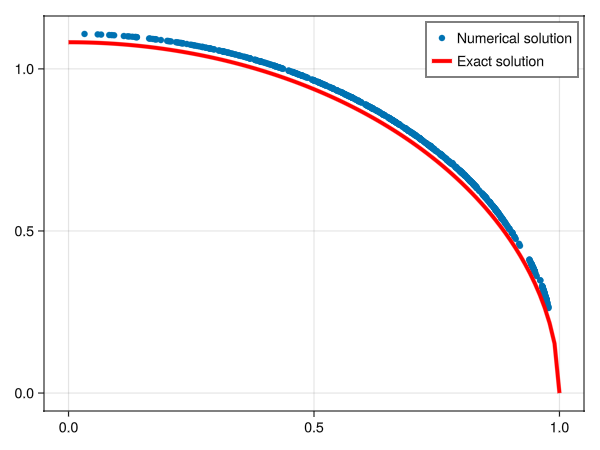

Next we show a crude visualization by plotting the displacement value at each point of the quadrature (as a function of the radius), and comparing it to the exact solution. The displacement is a vector, but we will only plot the $z$ component, which is the only one that is non-zero in this case.

using LinearAlgebra
using GLMakie
r    = map(q -> norm(Inti.coords(q)), Q)
vals = getindex.(φ, 3)
scatter(r, vals, label = "Numerical solution")
lines!(0:0.01:1, φ₃, label = "Exact solution", color = :red, linewidth = 4)
axislegend()
current_figure()

Although the solution is not perfect, it captures the general behavior of the displacement field. One way to make the error smaller is to use a finer mesh and/or higher order quadrature. An alternative way, however, is to use a weight function to incorporate the singular behavior of the displacement field near the edge of the crack, as shown next.

Improving the accuracy

It is beneficial to add a weight function to help the solution being more accurate near the crack, where the displacement is singular, asymptotically equal to $d^{1/2}$ ($d$ is the distance from a point to the crack front) according to the Williams' asymptotic expansion. For this simple example we take the weight function as:

\[w(\boldsymbol x):=\sqrt{1-||\boldsymbol x||}\underset{d\rightarrow 0}{\sim}\sqrt{d(\boldsymbol x)}\]

weight(x) = sqrt(1 - norm(x))

weight (generic function with 1 method)

and define a modified kernel $K_w$ as:

Kw = let w = weight, K = K
    (p,q) ->  K(p,q) * w(q.coords)
end
Inti.singularity_order(::typeof(Kw)) = -3

With this new kernel, we can build our new integral operator $T_w$ and solve the displacement jump equation for a modified density $\boldsymbol{\phi}_w = \boldsymbol{\phi} / w$:

Tw_op = Inti.IntegralOperator(Kw, Q)
Tw₀ = Inti.assemble_hmatrix(Tw_op)
δTw = Inti.adaptive_correction(Tw_op; maxdist = 2*meshsize, atol = 1e-2)
φw = solve(Tw₀, δTw, t)

636-element Vector{StaticArraysCore.SVector{3, Float64}}:
 [0.0, 0.0, 1.4230577966395288]
 [0.0, 0.0, 1.3912852547370926]
 [0.0, 0.0, 1.3810062354070236]
 [0.0, 0.0, 1.369810651834395]
 [0.0, 0.0, 1.411617074983003]
 [0.0, 0.0, 1.370515604234645]
 [0.0, 0.0, 1.4091460607454607]
 [0.0, 0.0, 1.439218899177028]
 [0.0, 0.0, 1.4483940421428139]
 [0.0, 0.0, 1.4162682326425804]
 ⋮
 [0.0, 0.0, 1.4552500232823369]
 [0.0, 0.0, 1.454888888017628]
 [0.0, 0.0, 1.43016155199291]
 [0.0, 0.0, 1.4539704181948117]
 [0.0, 0.0, 1.4578199738163533]
 [0.0, 0.0, 1.4320730789354137]
 [0.0, 0.0, 1.4572383962866002]
 [0.0, 0.0, 1.4507493642981835]
 [0.0, 0.0, 1.4325181374883704]

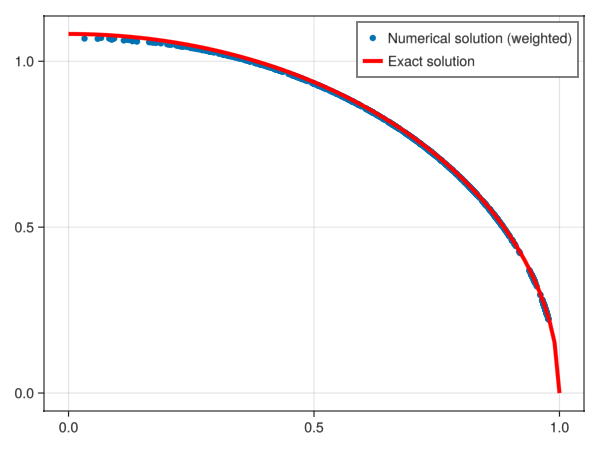

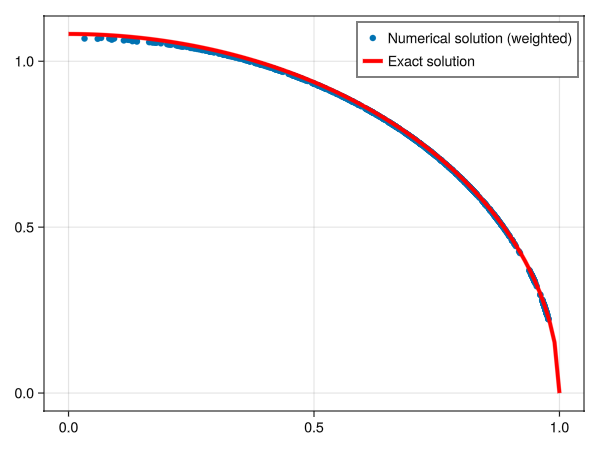

We now plot the displacement field again, but this with the weighted kernel approach, and compare it to the previous approach. Note that we must multiply the solution φw by the weight function to obtain the actual displacement jump φ.

weights = [weight(q.coords) for q in Q]
scatter(r, getindex.(φw,3) .* weights, label = "Numerical solution (weighted)")
lines!(0:0.01:1, φ₃, label = "Exact solution", color = :red, linewidth = 4)
axislegend()
current_figure()

The solution is now much more accurate, especially near the crack front, even though the same mesh and quadrature were used. This is a common technique in boundary integral equation: factoring out the asymptotic (non-smooth) behavior of the solution using a weight function.

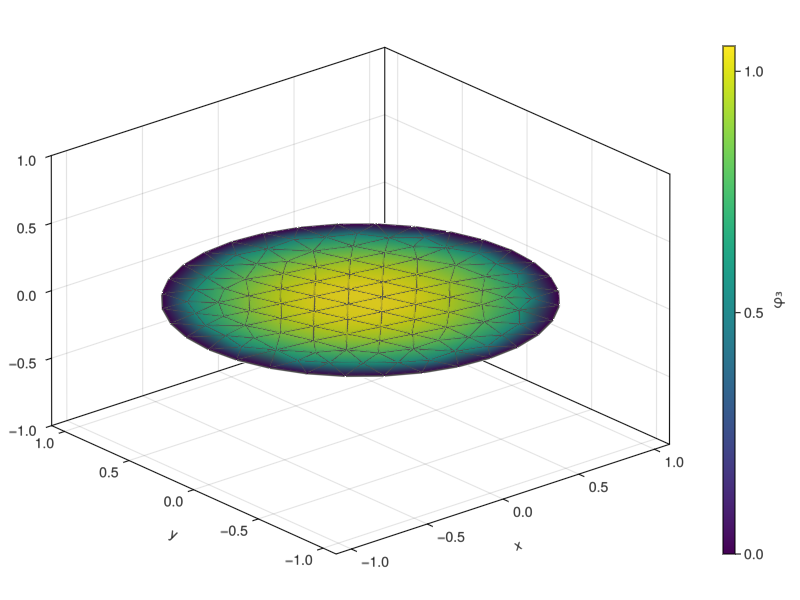

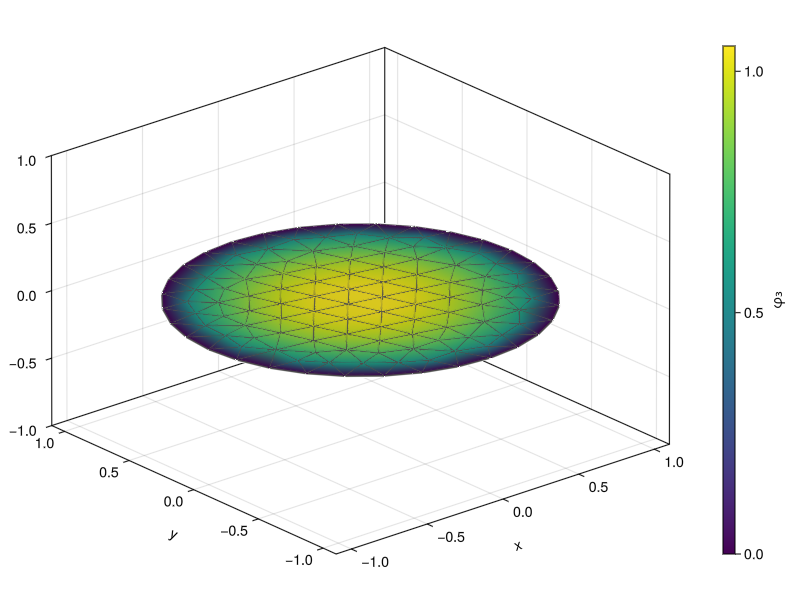

Finally, we can visualize the displacement field on the mesh by interpolating the computed values on the quadrature points to the mesh nodes. We use Meshes to visualize the solution:

using Meshes
φ3w_nodes = Inti.quadrature_to_node_vals(Q, getindex.(φw, 3))
msh_nodes = Inti.nodes(Q.mesh)
w_nodes = [weight(x) for x in msh_nodes]
φ3_nodes = φ3w_nodes .* w_nodes
colorrange = extrema(φ3_nodes)
fig = Figure(; size = (800, 600))
ax = Axis3(fig[1, 1])
n = length(Q.mesh.nodes)
viz!(Q.mesh; color = φ3_nodes, interpolate = false, showsegments=true)
cb = Colorbar(fig[1, 2]; label = "φ₃", colorrange)
fig
