Poisson Problem
- Reformulating Poisson-like problems using integral equations
- Using volume potentials
- Creating interior meshes using Gmsh
Problem definition
In this example we will solve the Poisson equation in a domain $\Omega$ with Dirichlet boundary conditions on $\Gamma := \partial \Omega$:
\[ \begin{align*} -\Delta u &= f \quad \text{in } \quad \Omega\\ u &= g \quad \text{on } \quad \Gamma \end{align*}\]
where $f : \Omega \to \mathbb{R}$ and $g : \Gamma \to \mathbb{R}$ are given functions. To solve this problem using integral equations, we split the solution $u$ into a particular solution $u_p$ and a homogeneous solution $u_h$:
\[ u = u_p + u_h.\]
The function $u_p$ is given by
\[u_p(\boldsymbol{r}) = \int_{\Omega} G(\boldsymbol{r}, \boldsymbol{r'}) f(\boldsymbol{r'}) d\boldsymbol{r'}.\]
with $G$ the fundamental solution of $-\Delta$.
The function $u_h$ satisfies the homogeneous problem
\[ \begin{align*} \Delta u_h &= 0, \quad &&\text{in } \quad \Omega, \\ u_h &= g - u_p, \quad &&\text{on } \quad \Gamma, \end{align*}\]
which can be solved using the integral equation method. In particular, for this example, we employ a double-layer formulation:
\[u_h(\boldsymbol{r}) = \int_{\Gamma} G(\boldsymbol{r}, \boldsymbol{r'}) \sigma(\boldsymbol{r}') d\boldsymbol{r'},\]
where the density function $\sigma$ solves the integral equation
\[ -\frac{\sigma(\boldsymbol{x})}{2} + \int_{\Gamma} \partial_{\nu_{\boldsymbol{y}}}G(\boldsymbol{x}, \boldsymbol{y}) \sigma(\boldsymbol{y}) \ \mathrm{d} s_{\boldsymbol{y}} = g(\boldsymbol{x}) - u_p(\boldsymbol{x}).\]
In what follows we illustrate how to solve the problem in this manner.
Geometry and mesh
We use the Gmsh API to create a jellyfish-shaped domain and to generate a second order mesh of its interior and boundary:
using Inti, Gmsh
meshsize = 0.1
gmsh.initialize()
jellyfish = Inti.gmsh_curve(0, 2π; meshsize) do s
r = 1 + 0.3 * cos(4 * s + 2 * sin(s))
return r * Inti.Point2D(cos(s), sin(s))
end
cl = gmsh.model.occ.addCurveLoop([jellyfish])
surf = gmsh.model.occ.addPlaneSurface([cl])
gmsh.model.occ.synchronize()
gmsh.option.setNumber("Mesh.MeshSizeMax", meshsize)
gmsh.model.mesh.generate(2)
gmsh.model.mesh.setOrder(2)
msh = Inti.import_mesh(; dim = 2)
gmsh.finalize()
Info : Meshing 1D...
Info : Meshing curve 1 (BSpline)
Info : Done meshing 1D (Wall 0.0266195s, CPU 0.026596s)
Info : Meshing 2D...
Info : Meshing surface 1 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0741228s, CPU 0.074119s)
Info : 566 nodes 1033 elements
Info : Meshing order 2 (curvilinear on)...
Info : [ 0%] Meshing curve 1 order 2
Info : [ 60%] Meshing surface 1 order 2
Info : Surface mesh: worst distortion = 0.451559 (0 elements in ]0, 0.2]); worst gamma = 0.758919
Info : Done meshing order 2 (Wall 0.00774582s, CPU 0.007746s)
We can now extract components of the mesh corresponding to the $\Omega$ and $\Gamma$ domains:
Ω = Inti.Domain(e -> Inti.geometric_dimension(e) == 2, msh)
Γ = Inti.boundary(Ω)
Ω_msh = view(msh, Ω)
Γ_msh = view(msh, Γ)

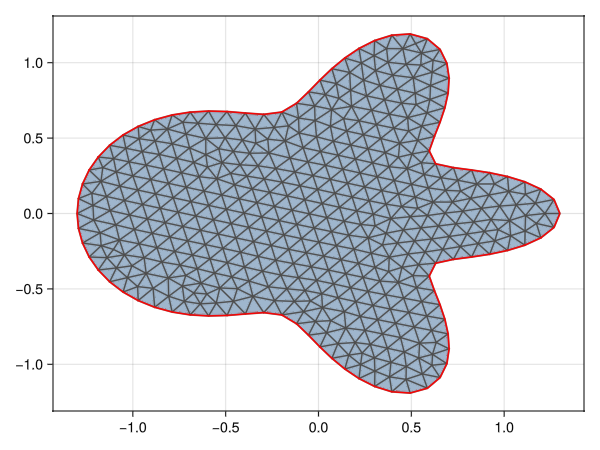

and visualize them:
using Meshes, GLMakie
viz(Ω_msh; showsegments = true)
viz!(Γ_msh; color = :red)

To conclude the geometric setup, we need a quadrature for the volume and boundary:
Ω_quad = Inti.Quadrature(Ω_msh; qorder = 4)
Γ_quad = Inti.Quadrature(Γ_msh; qorder = 6)
Integral operators
We can now assemble the required volume potential. To obtain the value of the particular solution $u_p$ on the boundary for the modified integral equation above we will need the volume integral operator mapping to points on the boundary, i.e. operator:
using FMM2D #to accelerate the maps
op = Inti.Laplace(; dim = 2)
# Newtonian potential mapping domain to boundary
V_d2b = Inti.volume_potential(;
op,
target = Γ_quad,
source = Ω_quad,
compression = (method = :fmm, tol = 1e-12),
correction = (method = :dim, maxdist = 5 * meshsize, target_location = :on),
)
588×5100 LinearMaps.LinearCombination{Float64} with 2 maps:
588×5100 LinearMaps.FunctionMap{Float64,true}(#3; issymmetric=false, ishermitian=false, isposdef=false)
588×5100 LinearMaps.WrappedMap{Float64} of
588×5100 SparseArrays.SparseMatrixCSC{Float64, Int64} with 3528 stored entries
We require also the boundary integral operators for the ensuing integral equation:
# Single and double layer operators on Γ
S_b2b, D_b2b = Inti.single_double_layer(;
op,
target = Γ_quad,
source = Γ_quad,
compression = (method = :fmm, tol = 1e-12),
correction = (method = :dim,),
)
(588×588 LinearMaps.LinearCombination{Float64} with 2 maps:
588×588 LinearMaps.FunctionMap{Float64,true}(#3; issymmetric=false, ishermitian=false, isposdef=false)
588×588 LinearMaps.WrappedMap{Float64} of
588×588 SparseArrays.SparseMatrixCSC{Float64, Int64} with 4116 stored entries, 588×588 LinearMaps.LinearCombination{Float64} with 2 maps:
588×588 LinearMaps.FunctionMap{Float64,true}(#4; issymmetric=false, ishermitian=false, isposdef=false)
588×588 LinearMaps.WrappedMap{Float64} of
588×588 SparseArrays.SparseMatrixCSC{Float64, Int64} with 4116 stored entries)
In this example we used the Fast Multipole Method (:fmm
) to accelerate the operators, and the Density Interpolation Method (:dim
) to correct singular and nearly-singular integral.
Solving the linear system
We are now in a position to solve the original Poisson problem, but for that we need to specify the functions $f$ and $g$. In order to verify that our numerical approximation is correct, however, we will play a different game and specify instead a manufactured solution $u_e$ from which we will derive the functions $f$ and $g$:
# Create a manufactured solution
uₑ = (x) -> cos(2 * x[1]) * sin(2 * x[2])
fₑ = (x) -> 8 * cos(2 * x[1]) * sin(2 * x[2]) # -Δuₑ
g = map(q -> uₑ(q.coords), Γ_quad)
f = map(q -> fₑ(q.coords), Ω_quad)
With these, we can compute the right-hand-side of the integral equation for the homogeneous part of the solution:
rhs = g - V_d2b * f
and solve the integral equation for the integral density function $σ$:
using IterativeSolvers, LinearAlgebra
σ = gmres(-I / 2 + D_b2b, rhs; abstol = 1e-8, verbose = true, restart = 1000)
=== gmres ===
rest iter resnorm
1 1 2.08e+00
1 2 1.26e+00
1 3 1.76e-01
1 4 2.10e-02
1 5 1.34e-03
1 6 5.55e-04
1 7 2.34e-04
1 8 8.19e-05
1 9 1.35e-05
1 10 2.94e-06
1 11 9.76e-07
1 12 1.31e-07
1 13 2.50e-08
With the density function at hand, we can now reconstruct our approximate solution:
G = Inti.SingleLayerKernel(op)
dG = Inti.DoubleLayerKernel(op)
𝒱 = Inti.IntegralPotential(G, Ω_quad)
𝒟 = Inti.IntegralPotential(dG, Γ_quad)
u = (x) -> 𝒱[f](x) + 𝒟[σ](x)
#13 (generic function with 1 method)
and evaluate it at any point in the domain:
x = Inti.Point2D(0.1, 0.4)
println("error at $x: ", u(x) - uₑ(x))
error at [0.1, 0.4]: 0.00010371018731314408
Solution evaluation and visualization
Although we have "solved" the problem in the previous section, using the anonymous function u
to evaluate the field is neither efficient nor accurate when there are either many points to evaluate, or when they lie close to the domain $\Omega$. The fundamental reason for this is the usual: the integral operators in the function u
are dense matrices, and their evaluation inside or near to $\Omega$ suffers from inaccurate singular and near-singular quadrature.
To address this issue, we need to assemble accelerated and corrected versions of the integral operators. Let us suppose we wish to evaluate the solution $u$ at all the quadrature nodes of $\Omega$:
V_d2d = Inti.volume_potential(;
op,
target = Ω_quad,
source = Ω_quad,
compression = (method = :fmm, tol = 1e-8),
correction = (method = :dim,),
)
5100×5100 LinearMaps.LinearCombination{Float64} with 2 maps:
5100×5100 LinearMaps.FunctionMap{Float64,true}(#3; issymmetric=false, ishermitian=false, isposdef=false)
5100×5100 LinearMaps.WrappedMap{Float64} of
5100×5100 SparseArrays.SparseMatrixCSC{Float64, Int64} with 30600 stored entries
Likewise, we need operators mapping densities from our boundary quadrature to our mesh nodes:
We now evaluate the solution at all quadrature nodes and compare it to the manufactured:
u_quad = V_d2d * f + D_b2d * σ
er_quad = u_quad - map(q -> uₑ(q.coords), Ω_quad)
println("maximum error at all quadrature nodes: ", norm(er_quad, Inf))
maximum error at all quadrature nodes: 0.0012392645770104675

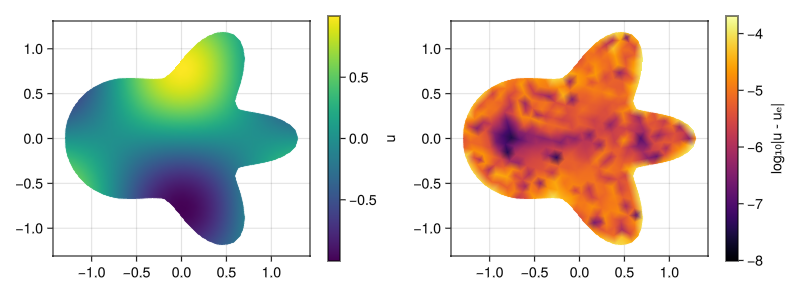

Lastly, let us visualize the solution and the error on the mesh nodes using quadrature_to_node_vals
:
nodes = Inti.nodes(Ω_msh)
u_nodes = Inti.quadrature_to_node_vals(Ω_quad, u_quad)
er = u_nodes - map(uₑ, nodes)
colorrange = extrema(u_nodes)
fig = Figure(; size = (800, 300))
ax = Axis(fig[1, 1]; aspect = DataAspect())
viz!(Ω_msh; colorrange, color = u_nodes, interpolate = true)
cb = Colorbar(fig[1, 2]; label = "u", colorrange)
# plot error
log_er = log10.(abs.(er))
colorrange = extrema(log_er)
colormap = :inferno
ax = Axis(fig[1, 3]; aspect = DataAspect())
viz!(Ω_msh; colorrange, colormap, color = log_er, interpolate = true)
cb = Colorbar(fig[1, 4]; label = "log₁₀|u - uₑ|", colormap, colorrange)
