Helmholtz scattering
- Creating a geometry using the Gmsh API
- Assembling integral operators and integral potentials
- Setting up a sound-soft problem in both 2 and 3 spatial dimensions
- Using GMRES to solve the linear system
- Exporting the solution to Gmsh for visualization
In this tutorial we will show how to solve an acoustic scattering problem in the context of Helmholtz equation. We will focus on a smooth sound-soft obstacle for simplicity, and introduce along the way the necessary techniques used to handle some difficulties encountered. We will use various packages throughout this example (including of course Inti.jl
); if they are not on your environment, you can install them using ] add <package>
in the REPL.
In the following section, we will provide a brief mathematical description of the problem (valid in both $2$ and $3$ dimensions). We will tackle the two-dimensional problem first, for which we do not need to worry much about performance issues (e.g. compressing the integral operators). Finally, we present a three-dimensional example, where we will use HMatrices.jl
to compress the underlying integral operators.
Sound-soft problem
This example concerns the sound-soft acoustic scattering problem. Mathematically, this means solving an exterior problem governed by Helmholtz equation (time-harmonic acoustics) with a Dirichlet boundary condition. More precisely, letting $\Omega \subset \mathbb{R}^d$ be a bounded domain, and denoting by $\Gamma = \partial \Omega$ its boundary, we wish to solve
\[\Delta u + k^2 u = 0 \quad \text{on} \quad \mathbb{R}^d \setminus \bar{\Omega},\]
subject to Dirichlet boundary conditions on $\Gamma$
\[ u(\boldsymbol{x}) = g(\boldsymbol{x}) \quad \text{for} \quad \boldsymbol{x} \in \Gamma.\]
and the Sommerfeld radiation condition at infinity
\[ \lim_{|\boldsymbol{x}| \to \infty} |\boldsymbol{x}|^{(d-1)/2} \left( \frac{\partial u}{\partial |\boldsymbol{x}|} - i k u \right) = 0.\]
Here $g$ is a (given) boundary datum, and $k$ is the constant wavenumber.
For simplicity, we will take $\Gamma$ circle/sphere, and focus on the plane-wave scattering problem. This means we will seek a solution $u$ of the form $u = u_s + u_i$, where $u_i$ is a known incident field, and $u_s$ is the scattered field we wish to compute.
The main reason for focusing on such a simple example is twofold. First, it alleviates the complexities associated with the mesh generation. Second, since exact solutions are known for this problem (in the form of a series), it is easy to assess the accuracy of the solution obtained. In practice, you can use the same techniques to solve the problem on more complex geometries by providing a .msh
file containing the mesh.
Using the theory of boundary integral equations, we can express $u_s$ as
\[ u_s(\boldsymbol{r}) = \mathcal{D}[\sigma](\boldsymbol{r}) - i k \mathcal{S}[\sigma](\boldsymbol{r}),\]
where $\mathcal{S}$ is the so-called single layer potential, $\mathcal{D}$ is the double-layer potential, and $\sigma : \Gamma \to \mathbb{C}$ is a surface density. This is an indirect formulation (because $\sigma$ is an auxiliary density, not necessarily physical) commonly referred to as a combined field formulation. Taking the limit $\mathbb{R}^d \setminus \bar \Omega \ni x \to \Gamma$, it can be shown that the following equation holds on $\Gamma$:
\[ \left( \frac{\mathrm{I}}{2} + \mathrm{D} - i k \mathrm{S} \right)[\sigma] = g,\]
where $\mathrm{I}$ is the identity operator, and $\mathrm{S}$ and $\mathrm{D}$ are the single- and double-layer operators. This is the combined field integral equation that we will solve. The boundary data $g$ is obtained by applying the sound-soft condition $u=0$ on $\Gamma$, from which it readily follows that $u_s = -u_i$ on $\Gamma$.
We are now have the necessary background to solve this problem in both 2 and 3 spatial dimensions. Let's load Inti.jl
as well as the required dependencies
using Inti
using LinearAlgebra
using StaticArrays
using Gmsh
using Meshes
using GLMakie
using SpecialFunctions
using GSL
using IterativeSolvers
using LinearMaps
and setup some of the (global) problem parameters:
k = 4π
λ = 2π / k
qorder = 4 # quadrature order
gorder = 2 # order of geometrical approximation
Two-dimensional scattering
We will use Gmsh API for creating .msh
file containing the desired geometry and mesh. Here is a function to mesh the circle:
function gmsh_circle(; name, meshsize, order = 1, radius = 1, center = (0, 0))
try
gmsh.initialize()
gmsh.model.add("circle-mesh")
gmsh.option.setNumber("Mesh.MeshSizeMax", meshsize)
gmsh.option.setNumber("Mesh.MeshSizeMin", meshsize)
gmsh.model.occ.addDisk(center[1], center[2], 0, radius, radius)
gmsh.model.occ.synchronize()
gmsh.model.mesh.generate(1)
gmsh.model.mesh.setOrder(order)
gmsh.write(name)
finally
gmsh.finalize()
end
end
Let us now use gmsh_circle
to create a circle.msh
file. As customary in wave-scattering problems, we will choose a mesh size that is proportional to wavelength:
name = joinpath(@__DIR__, "circle.msh")
meshsize = λ / 5
gmsh_circle(; meshsize, order = gorder, name)
Info : Meshing 1D...
Info : Meshing curve 1 (Ellipse)
Info : Done meshing 1D (Wall 0.000148067s, CPU 0.00015s)
Info : 63 nodes 64 elements
Info : Meshing order 2 (curvilinear on)...
Info : [ 0%] Meshing curve 1 order 2
Info : [ 60%] Meshing surface 1 order 2
Info : Done meshing order 2 (Wall 0.000376845s, CPU 0.000373s)
Info : Writing '/home/runner/work/Inti.jl/Inti.jl/docs/build/pluto-examples/circle.msh'...
Info : Done writing '/home/runner/work/Inti.jl/Inti.jl/docs/build/pluto-examples/circle.msh'
We can now import the file and parse the mesh and domain information into Inti.jl
using the import_mesh
function:
Inti.clear_entities!() # empty the entity cache
msh = Inti.import_mesh(name; dim = 2)
Inti.Mesh{2, Float64} containing:
1 elements of type StaticArraysCore.SVector{2, Float64}
63 elements of type Inti.LagrangeElement{Inti.ReferenceHyperCube{1}, 3, StaticArraysCore.SVector{2, Float64}}
The code above will import the mesh with all of its geometrical entities. The dim=2
projects all points to two dimensions by ignoring the third component. To extract the domain $\Omega$ we need to filter the entities in the mesh; here we will simply filter them based on the geometric_dimension
:
Ω = Inti.Domain(e -> Inti.geometric_dimension(e) == 2, Inti.entities(msh))
Domain with 1 entity
EntityKey: (2, 1) => Inti.GeometricEntity with labels String[]
To solve our boundary integral equation usign a Nyström method, we actually need a quadrature of our curve/surface (and possibly the normal vectors at the quadrature nodes). Once a mesh is available, creating a quadrature object can be done via the Quadrature
constructor, which requires passing a mesh of the domain that one wishes to generate a quadrature for:
Γ = Inti.boundary(Ω)
Γ_msh = view(msh, Γ)
Q = Inti.Quadrature(Γ_msh; qorder)
In Inti.jl
, you can use domain to create a view of a mesh containing only the elements in the domain. For example view(msh,Γ)
will return an SubMesh
type that you can use to iterate over the elements in the boundary of the disk without actually creating a new mesh. You can use msh[Γ]
, or collect(view(msh,Γ))
to create a new mesh containing only the elements and nodes in Γ
.
The object Q
now contains a quadrature (of order 4
) that can be used to solve a boundary integral equation on Γ
. As a sanity check, let's make sure integrating the function x->1
over Q
gives an approximation to the perimeter:
abs(Inti.integrate(x -> 1, Q) - 2π)
6.470135849312442e-7
With the Quadrature
constructed, we now can define discrete approximation to the integral operators $\mathrm{S}$ and $\mathrm{D}$ as follows:
op = Inti.Helmholtz(; k, dim = 2)
S, D = Inti.single_double_layer(;
op,
target = Q,
source = Q,
compression = (method = :none,),
correction = (method = :dim,),
)
There are two well-known difficulties related to the discretization of the boundary integral operators $S$ and $D$:
- The kernel of the integral operator is not smooth, and thus specialized quadrature rules are required to accurately approximate the matrix entries for which the target and source point lie close (relative to some scale) to each other.
- The underlying matrix is dense, and thus the storage and computational cost of the operator is prohibitive for large problems unless acceleration techniques such as Fast Multipole Methods or Hierarchical Matrices are employed.
Inti.jl
tries to provide a modular and transparent interface for dealing with both of these difficulties, where the general approach for solving a BIE will be to first construct a (possible compressed) naive representation of the integral operator where singular and nearly-singular integrals are ignored, followed by a the creation of a (sparse) correction intended to account for such singular interactions. See single_double_layer
for more details on the various options available.
We can now combine S
and D
to form the combined-field operator:
L = I / 2 + D - im * k * S
where I
is the identity matrix. Assuming an incident field along the $x_1$ direction of the form $u_i =e^{ikx_1}$, the right-hand side of the equation can be construted using:
uᵢ = x -> exp(im * k * x[1]) # plane-wave incident field
rhs = map(Q) do q
x = q.coords
return -uᵢ(x)
end
In computing rhs
above, we used map
to evaluate the incident field at all quadrature nodes. When iterating over Q
, the iterator returns a QuadratureNode
, and not simply the coordinate of the quadrature node. This is so that you can access additional information, such as the normal
vector, at the quadrature node.
We can now solve the integral equation using e.g. the backslash operator:
σ = L \ rhs
The variable σ
contains the value of the approximate density at the quadrature nodes. To reconstruct a continuous approximation to the solution, we can use single_double_layer_potential
to obtain the single- and double-layer potentials, and then combine them as follows:
𝒮, 𝒟 = Inti.single_double_layer_potential(; op, source = Q)
uₛ = x -> 𝒟[σ](x) - im * k * 𝒮[σ](x)
The variable uₛ
is an anonymous/lambda function representing the approximate scattered field.
To assess the accuracy of the solution, we can compare it to the exact solution (obtained by separation of variables in polar coordinates):
function circle_helmholtz_soundsoft(pt; radius = 1, k, θin)
x = pt[1]
y = pt[2]
r = sqrt(x^2 + y^2)
θ = atan(y, x)
u = 0.0
r < radius && return u
c(n) = -exp(im * n * (π / 2 - θin)) * besselj(n, k * radius) / besselh(n, k * radius)
u = c(0) * besselh(0, k * r)
n = 1
while (abs(c(n)) > 1e-12)
u +=
c(n) * besselh(n, k * r) * exp(im * n * θ) +
c(-n) * besselh(-n, k * r) * exp(-im * n * θ)
n += 1
end
return u
end
Here is the maximum error on some points located on a circle of radius 2
:
uₑ = x -> circle_helmholtz_soundsoft(x; k, radius = 1, θin = 0) # exact solution
er = maximum(0:0.01:2π) do θ
R = 2
x = (R * cos(θ), R * sin(θ))
return abs(uₛ(x) - uₑ(x))
end
@info "maximum error = $er"
[ Info: maximum error = 1.5016309862142812e-6
As we can see, the error is quite small! Let's use Makie
to visualize the solution in this simple (2d) example:
xx = yy = range(-4; stop = 4, length = 200)
vals =
map(pt -> Inti.isinside(pt, Q) ? NaN : real(uₛ(pt) + uᵢ(pt)), Iterators.product(xx, yy))
fig, ax, hm = heatmap(
xx,
yy,
vals;
colormap = :inferno,
interpolate = true,
axis = (aspect = DataAspect(), xgridvisible = false, ygridvisible = false),
)
viz!(Γ_msh; color = :white, segmentsize = 5)
Colorbar(fig[1, 2], hm)
fig

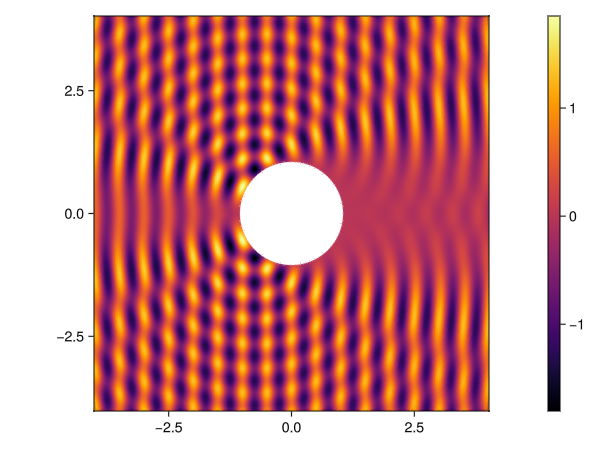

While here we simply used a heatmap to visualize the solution, more complex problems may require a mesh-based visualization, where we would first create a mesh for the places where we want to visualize the solution.
Before moving on to the 3D example let us simply mention that, besides the fact that an analytic solution was available for comparisson, there was nothing special about the unit disk (or the use of GMSH). We could have, for instance, replaced the disk by shapes created parametrically:
let
# vertices of an equilateral triangle centered at the origin with a vertex at (0,1)
a, b, c = SVector(0, 1), SVector(sqrt(3) / 2, -1 / 2), SVector(-sqrt(3) / 2, -1 / 2)
function circle_f(center, radius)
return s -> center + radius * SVector(cospi(2 * s[1]), sinpi(2 * s[1]))
end
disk1 = Inti.parametric_curve(circle_f(a, 1 / 2), 0, 1)
disk2 = Inti.parametric_curve(circle_f(b, 1 / 2), 0, 1)
disk3 = Inti.parametric_curve(circle_f(c, 1 / 2), 0, 1)
Γ = disk1 ∪ disk2 ∪ disk3
msh = Inti.meshgen(Γ; meshsize)
Γ_msh = view(msh, Γ)
Q = Inti.Quadrature(Γ_msh; qorder)
S, D = Inti.single_double_layer(;
op,
target = Q,
source = Q,
compression = (method = :none,),
correction = (method = :dim,),
)
L = I / 2 + D - im * k * S
rhs = map(q -> -uᵢ(q.coords), Q)
σ = L \ rhs
𝒮, 𝒟 = Inti.single_double_layer_potential(; op, source = Q)
uₛ = x -> 𝒟[σ](x) - im * k * 𝒮[σ](x)
vals = map(
pt -> Inti.isinside(pt, Q) ? NaN : real(uₛ(pt) + uᵢ(pt)),
Iterators.product(xx, yy),
)
colorrange = (-2, 2)
fig, ax, hm = heatmap(
xx,
yy,
vals;
colormap = :inferno,
colorrange,
interpolate = true,
axis = (aspect = DataAspect(), xgridvisible = false, ygridvisible = false),
)
viz!(Γ_msh; color = :black, segmentsize = 4)
Colorbar(fig[1, 2], hm)

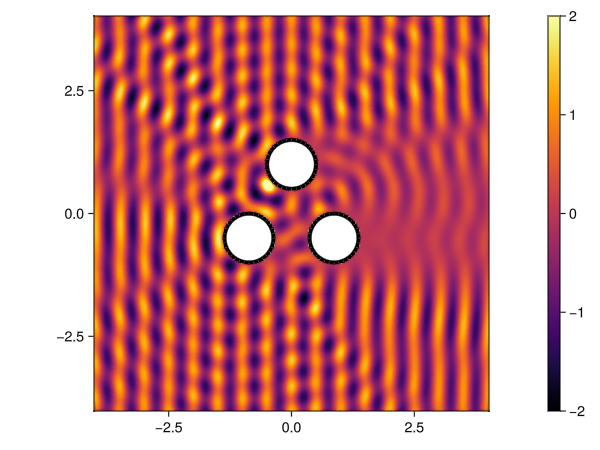

fig
end

In the example above we employed a naive evaluation of the integral potentials, and therefore the computed solution is expected to become innacurate near the obstacles. See the layer potential tutorial for more information on how to correct for this.
Three-dimensional scattering
We now consider the same problem in 3D. Unlike the 2D case, assembling dense matrix representations of the integral operators quickly becomes unfeasiable as the problem size increases. Inti
adds support for compressing the underlying linear operators by wrapping external libraries. In this example, we will rely on HMatrices.jl
to handle the compression.
The visualization is also more involved, and we will use the Gmsh
API to create a not only a mesh of the scatterer, but also of a punctured plane where we will visualize the solution. Here is the function that setups up the mesh:
function gmsh_sphere(; meshsize, order = gorder, radius = 1, visualize = false, name)
gmsh.initialize()
gmsh.model.add("sphere-scattering")
gmsh.option.setNumber("Mesh.MeshSizeMax", meshsize)
gmsh.option.setNumber("Mesh.MeshSizeMin", meshsize)
sphere_tag = gmsh.model.occ.addSphere(0, 0, 0, radius)
xl, yl, zl = -2 * radius, -2 * radius, 0
Δx, Δy = 4 * radius, 4 * radius
rectangle_tag = gmsh.model.occ.addRectangle(xl, yl, zl, Δx, Δy)
outDimTags, _ =
gmsh.model.occ.cut([(2, rectangle_tag)], [(3, sphere_tag)], -1, true, false)
gmsh.model.occ.synchronize()
gmsh.model.addPhysicalGroup(3, [sphere_tag], -1, "omega")
gmsh.model.addPhysicalGroup(2, [dt[2] for dt in outDimTags], -1, "sigma")
gmsh.model.mesh.generate(2)
gmsh.model.mesh.setOrder(order)
visualize && gmsh.fltk.run()
gmsh.option.setNumber("Mesh.SaveAll", 1) # otherwise only the physical groups are saved
gmsh.write(name)
return gmsh.finalize()
end
As before, lets write a file with our mesh, and import it into Inti.jl
:
name_sphere = joinpath(@__DIR__, "sphere.msh")
gmsh_sphere(; meshsize = (λ / 5), order = gorder, name = name_sphere, visualize = false)
msh_3d = Inti.import_mesh(name_sphere; dim = 3)
Inti.Mesh{3, Float64} containing:
255 elements of type Inti.LagrangeElement{Inti.ReferenceHyperCube{1}, 3, StaticArraysCore.SVector{3, Float64}}
7 elements of type StaticArraysCore.SVector{3, Float64}
6239 elements of type Inti.LagrangeElement{Inti.ReferenceSimplex{2}, 6, StaticArraysCore.SVector{3, Float64}}
If you pass visualize=true
to gmsh_sphere
, it will open a window with the current model. This is done by calling gmsh.fltk.run()
. Note that the main julia thread will be blocked until the window is closed.
Since we created physical groups in Gmsh
, we can use them to extract the relevant domains Ω
and Σ
:
Ω_3d = Inti.Domain(e -> "omega" ∈ Inti.labels(e), Inti.entities(msh_3d))
Σ_3d = Inti.Domain(e -> "sigma" ∈ Inti.labels(e), Inti.entities(msh_3d))
Γ_3d = Inti.boundary(Ω_3d)
We can now create a quadrature as before
Γ_msh_3d = view(msh_3d, Γ_3d)
Q_3d = Inti.Quadrature(Γ_msh_3d; qorder)
Writing and reading a mesh to/from disk can be time consuming. You can avoid doing so by using import_mesh
without a file name to import the mesh from the current gmsh
session without the need to write it to disk.
Next we assemble the integral operators, indicating that we wish to compress them using hierarchical matrices:
using HMatrices
op_3d = Inti.Helmholtz(; k, dim = 3)
S_3d, D_3d = Inti.single_double_layer(;
op = op_3d,
target = Q_3d,
source = Q_3d,
compression = (method = :hmatrix, tol = 1e-4),
correction = (method = :dim,),
)
Here is how much memory it would take to store the dense representation of these matrices:
mem = 2 * length(S_3d) * 16 / 1e9 # 16 bytes per complex number, 1e9 bytes per GB, two matrices
println("memory required to store S and D: $(mem) GB")
memory required to store S and D: 11.445239808 GB
Even for this simple example, the dense representation of the integral operators as matrix is already quite expensive!
It is worth mentioning that hierchical matrices are not the only way to compress such integral operators, and may in fact not even be the best for the problem at hand. For example, one could use a fast multipole method (FMM), which has a much lighter memory footprint. See the the tutorial on compression methods for more information.
We will use the generalized minimal residual (GMRES) iterative solver, for the linear system. This requires us to define a linear operator L
, approximating the combined-field operator, that supports the matrix-vector product. While it is possible to add two HMatrix
objects to obtain a new HMatrix
, this is somewhat more involved due to the addition of low-rank blocks (which requires a recompression). To keep things simple, we will use LinearMaps
to lazily compose the operators:
L_3d = I / 2 + LinearMap(D_3d) - im * k * LinearMap(S_3d)
We can now solve the linear system using GMRES solver:
rhs_3d = map(Q_3d) do q
x = q.coords
return -uᵢ(x)
end
σ_3d, hist = gmres(
L_3d,
rhs_3d;
log = true,
abstol = 1e-6,
verbose = false,
restart = 100,
maxiter = 100,
)
@show hist
Converged after 18 iterations.
As before, let us represent the solution using IntegralPotential
s:
𝒮_3d, 𝒟_3d = Inti.single_double_layer_potential(; op = op_3d, source = Q_3d)
uₛ_3d = x -> 𝒟_3d[σ_3d](x) - im * k * 𝒮_3d[σ_3d](x)
To check the result, we compare against the exact solution obtained through a series:
sphbesselj(l, r) = sqrt(π / (2r)) * besselj(l + 1 / 2, r)
sphbesselh(l, r) = sqrt(π / (2r)) * besselh(l + 1 / 2, r)
sphharmonic(l, m, θ, ϕ) = GSL.sf_legendre_sphPlm(l, abs(m), cos(θ)) * exp(im * m * ϕ)
function sphere_helmholtz_soundsoft(xobs; radius = 1, k = 1, θin = 0, ϕin = 0)
x = xobs[1]
y = xobs[2]
z = xobs[3]
r = sqrt(x^2 + y^2 + z^2)
θ = acos(z / r)
ϕ = atan(y, x)
u = 0.0
r < radius && return u
function c(l, m)
return -4π * im^l * sphharmonic(l, -m, θin, ϕin) * sphbesselj(l, k * radius) /
sphbesselh(l, k * radius)
end
l = 0
for l = 0:60
for m = -l:l
u += c(l, m) * sphbesselh(l, k * r) * sphharmonic(l, m, θ, ϕ)
end
l += 1
end
return u
end
We will compute the error on some point on the sphere of radius 2
:
uₑ_3d = (x) -> sphere_helmholtz_soundsoft(x; radius = 1, k = k, θin = π / 2, ϕin = 0)
er_3d = maximum(1:100) do _
x̂ = rand(Inti.Point3D) |> normalize # an SVector of unit norm
x = 2 * x̂
return abs(uₛ_3d(x) - uₑ_3d(x))
end
@info "error with correction = $er_3d"
[ Info: error with correction = 3.360056213818773e-5
We see that, once again, the approximation is quite accurate. Let us now visualize the solution on the punctured plane (which we labeled as "sigma"). Since evaluating the integral representation of the solution at many points is expensive, we will use again use a method to accelerate the evaluation:
Σ_msh = view(msh_3d, Σ_3d)
target = Inti.nodes(Σ_msh)
S_viz, D_viz = Inti.single_double_layer(;
op = op_3d,
target,
source = Q_3d,
compression = (method = :hmatrix, tol = 1e-4),
# correction for the nearfield (for visual purposes, set to `:none` to disable)
correction = (method = :dim, maxdist = meshsize, target_location = :outside),
)
ui_eval_msh = uᵢ.(target)
us_eval_msh = D_viz * σ_3d - im * k * S_viz * σ_3d
u_eval_msh = ui_eval_msh + us_eval_msh

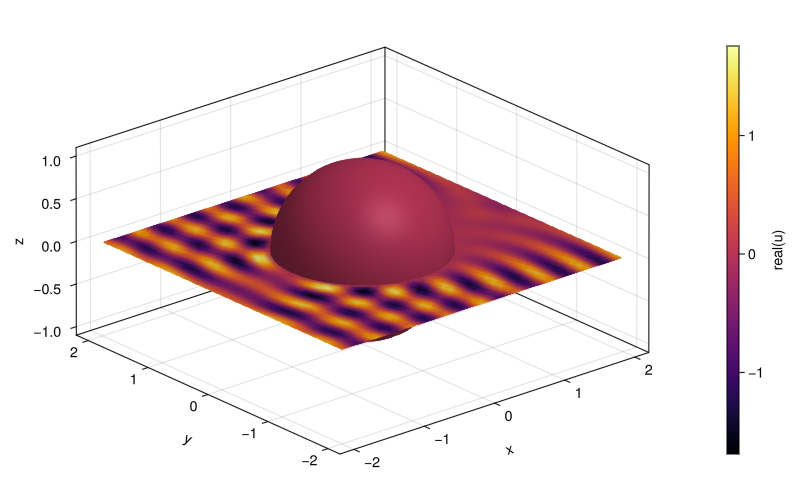

Finalize, we use Meshes.viz
to visualize the scattered field:
nv = length(Inti.nodes(Γ_msh_3d))
colorrange = extrema(real(u_eval_msh))
colormap = :inferno
fig_3d = Figure(; size = (800, 500))
ax_3d = Axis3(fig_3d[1, 1]; aspect = :data)
viz!(Γ_msh_3d; colorrange, colormap, color = zeros(nv), interpolate = true)
viz!(Σ_msh; colorrange, colormap, color = real(u_eval_msh))
cb = Colorbar(fig_3d[1, 2]; label = "real(u)", colormap, colorrange)
